同仁化学Hampton蛋白结晶试剂盒VDX48 Plate with sealant| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 48 Well Crystallization Plates > VDX48 Plate with sealant

VDX48 Plate with sealant

Applications

  • Hanging drop crystallization

Features

  • 48 well plate with raised cover
  • Sealant applied to 48 wells, ready to seal with cover slides
  • Compatible with 12 mm diameter circle cover slides
  • Optically clear plastic
  • 128 mm x 85 mm microplate footprint
  • Compatible with UV crystal imaging when used with HR3-277 or HR3-279 – 12 mm x 0.22 mm Siliconized circle cover slides

Description

48 well plate with sealant for hanging drop vapor diffusion crystallization with a microplate footprint. Stackable, optically clear plastic, 48 well plates with raised covers (to allow room for cover slides) and flat bottoms for exceptional optics. Raised, wide rings around each reservoir (well) minimize cross contamination and allow each well to be individually sealed with 12 mm diameter circle cover slides. Plates are individually wrapped and supplied with applied sealant. The microplate footprint is space-saving and compatible with automated liquid handling systems.

Approximate dimensions: 128 mm x 85 mm
Approximate well ID: 9 mm
Typical well volume: 100 to 300 µl

Show More



Hampton蛋白结晶试剂盒VDX48 Plate with sealant

Click to Zoom In

Hampton蛋白结晶试剂盒VDX48 Plate with sealant
Hampton蛋白结晶试剂盒VDX48 Plate with sealant
Hampton蛋白结晶试剂盒VDX48 Plate with sealant
Hampton蛋白结晶试剂盒VDX48 Plate with sealant
Hampton蛋白结晶试剂盒VDX48 Plate with sealant
Hampton蛋白结晶试剂盒VDX48 Plate with sealant
Hampton蛋白结晶试剂盒VDX48 Plate with sealant

CAT NO

HR3-275

NAME

VDX48 Plate with sealant

DESCRIPTION

50 plate case

PRICE

$457.00

cart quote

Support Material(s)

Hampton蛋白结晶试剂盒VDX48 Plate with sealant HR3-275 VDX48 Plate Template

Related Item(S)

  • 12 mm Siliconized Glass Cover Slides

References

1. Cyclic olefin homopolymer-based microfluidics for protein crystallization and in situ X-ray diffraction. Emamzadah et al, Acta Cryst. (2009), D65, 913-920.

同仁化学Hampton蛋白结晶试剂盒CrystalHarp Plate (Swissci)| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 48 Well Crystallization Plates > CrystalHarp Plate (Swissci)

CrystalHarp Plate (Swissci)

Applications

  • Capillary diffusion crystallization & in situ X-ray diffraction analysis

Features

  • Capillary diffusion offers a broad variable screen in one experiment
  • 48 experiments per plate
  • in situ diffraction analysis using conventional X-ray sources
  • Direct beam line and in situ diffraction analysis possible
  • Unique capillary material with easy to remove crystal methodology
  • Compatible with any incubation and imaging system

Description

The CrystalHarp plate is designed for crystallization based on capillary diffusion and can be used for crystallization screening and optimization.

Capillary diffusion achieves a much broader screening of variables in one single experiment. The CrystalHarp plate contains 48 capillaries in total and is in an ANSI/SBS 1-2004-standard format to facilitate handling and imaging.

Addition of cryoprotectants or derivatives for phasing studies can be easily added after crystal appearance. The SBS format enables the usage of the plate directly on beam line robots or alternatively single capillaries can be easily mounted to standard magnetic base, enabling in situ diffraction analysis.

The unique capillary material allows data collection at room temperature. Flash-freezing in a liquid nitrogen stream (with or without the use of cryoprotectants) is also feasible. The formation of ice-rings is kept to a manageable minimum.

Contents of Box
1. CrystalHarp plate in shrink wrap
2. Sealant in 10 milliliter syringe with orange delivery nozzle
3. 2 milliliter syringe and flat green nozzle for capillary cleaving
4. Instruction booklet

Swissci product number QH48T-G100

Video demonstration below:

Show More



Hampton蛋白结晶试剂盒CrystalHarp Plate (Swissci)

Click to Zoom In

Hampton蛋白结晶试剂盒CrystalHarp Plate (Swissci)

CAT NO

HR3-188

NAME

CrystalHarp Plate

DESCRIPTION

each

PRICE

$281.00

cart quote

Support Material(s)

Hampton蛋白结晶试剂盒CrystalHarp Plate (Swissci) HR3-188 CrystalHarp User GuideHampton蛋白结晶试剂盒CrystalHarp Plate (Swissci) HR3-188 CrystalHarp Poster Presentation

References

1. A free interface diffusion technique for the crystallization of proteins for X-ray crystallography. F. R. Salemme, Archives of Biochemistry and Biophysics Volume 151, Issue 2, August 1972, Pages 533-539.

同仁化学Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 24 Well Crystallization Plates > Cryschem M Plate (round reagent reservoir)

Cryschem M Plate (round reagent reservoir)

Applications

  • Sitting drop crystallization
  • Heavy atom soaks
  • Seeding

Features

  • Optically clear, concave sitting drop post
  • Cryschem M – Microplate footprint with round reagent reservoir
  • Smooth, flat top for easy seal
  • Each plate supplied with a cover

Description

Cryschem M Plate has a microplate footprint with circular reagent reservoir.

Cryschem M microplate approximate size: 128 mm x 86 mm x 14 mm
Approximate circular reservoir size: 15 mm wide x 9 mm deep
Typical reservoir volume: 500 µl
Well capacity: 1.1 ml
Maximum drop volume on post: 30 µl

Recommended seal:
HR3-609 Crystal Clear Sealing Film (100 pack)
HR4-521 ClearSeal Film (100 pack)
HR4-506 Crystal Clear Sealing Tape (3 inch x 55 yard roll, without cutter)
HR4-508 Crystal Clear Sealing Tape (0.75 inch x 650 inch, with cutter) seals a single row at a time

Show More



Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)

Click to Zoom In

Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem M Plate (round reagent reservoir)

CAT NO

HR1-002

NAME

Cryschem M Plate (round reagent reservoir)

DESCRIPTION

50 plate case

PRICE

$174.00

cart quote

Related Item(S)

  • Crystal Clear Sealing Tape
  • Crystal Clear Sealing Film

同仁化学Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 24 Well Crystallization Plates > Cryschem S Plate (square reagent reservoir)

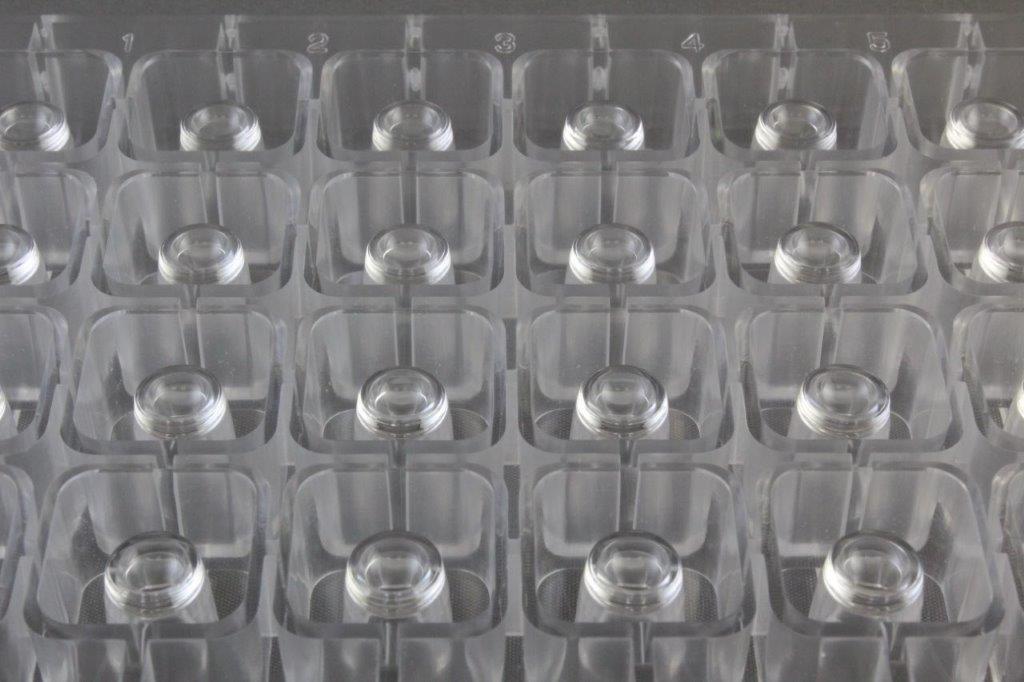

Cryschem S Plate (square reagent reservoir)

Applications

  • Sitting drop crystallization
  • Heavy atom soaks
  • Seeding

Features

  • Optically clear, concave sitting drop post
  • Cryschem S – Microplate footprint with square reagent reservoir (compatible with Formulatrix Formulator)
  • Smooth, flat top for easy seal
  • Each plate supplied with a cover

Description

Cryschem S Plate has a microplate footprint with square reagent reservoir.

Cryschem S microplate approximate size: 128 mm x 86 mm x 14 mm
Approximate square reservoir size: 15 mm wide x 9 mm deep
Typical reservoir volume: 500 µl
Well capacity: 1.1 ml
Maximum drop volume on post: 30 µl

Recommended seal:
HR3-609 Crystal Clear Sealing Film (100 pack)
HR4-521 ClearSeal Film (100 pack)
HR4-506 Crystal Clear Sealing Tape (3 inch x 55 yard roll, without cutter)
HR4-508 Crystal Clear Sealing Tape (0.75 inch x 650 inch, with cutter) seals a single row at a time

Show More



Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)

Click to Zoom In

Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)
Hampton蛋白结晶试剂盒Cryschem S Plate (square reagent reservoir)

CAT NO

HR3-308

NAME

Cryschem S Plate (square reagent reservoir)

DESCRIPTION

50 plate case

PRICE

$174.00

cart quote

Related Item(S)

  • Crystal Clear Sealing Tape
  • Crystal Clear Sealing Film

同仁化学Hampton蛋白结晶试剂盒Cryschem Plate| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 24 Well Crystallization Plates > Cryschem Plate

Cryschem Plate

Applications

  • Sitting drop crystallization
  • Heavy atom soaks
  • Seeding

Features

  • Optically clear, concave sitting drop post
  • Cryschem Plate – Larger footprint and round reagent reservoir
  • Smooth, flat top for easy seal
  • Each plate supplied with a cover

Description

Cryschem Plate is large plate footprint with circular reagent reservoir.

Cryschem plate approximate size: 15.0 cm x 10.6 cm x 2.2 cm
Approximate well size: 1.6 cm x 1.5 cm
Typical fill volume: 500 to 1,000 µl
Well capacity: 1.5 ml
Maximum drop volume on post: 40 µl

Recommended seal:
HR3-511 Crystal Clear Sealing Tape (1.88 inch x 43.7 yard roll, with cutter)
HR4-511 Crystal Clear Sealing Tape (1.88 inch x 60 yard roll, without cutter)





Show More



Hampton蛋白结晶试剂盒Cryschem Plate

Click to Zoom In

Hampton蛋白结晶试剂盒Cryschem Plate
Hampton蛋白结晶试剂盒Cryschem Plate
Hampton蛋白结晶试剂盒Cryschem Plate
Hampton蛋白结晶试剂盒Cryschem Plate
Hampton蛋白结晶试剂盒Cryschem Plate
Hampton蛋白结晶试剂盒Cryschem Plate
Hampton蛋白结晶试剂盒Cryschem Plate

CAT NO

HR3-159

NAME

Cryschem Plate

DESCRIPTION

40 plate case

PRICE

$192.00

cart quote

Related Item(S)

  • Crystal Clear Sealing Tape

References



同仁化学Hampton蛋白结晶试剂盒VDX Plate with sealant| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 24 Well Crystallization Plates > VDX Plate with sealant

VDX Plate with sealant

Applications

  • Hanging drop crystallization
  • Sitting drop crystallization with Micro-Bridges®
  • Dialysis crystallization with Dialysis Buttons™

Features

  • 24 well plate with raised cover
  • Sealant applied to 24 wells, ready to seal with cover slides
  • Compatible with 22 mm diameter square and circle cover slides
  • Optically clear plastic
  • Extremely versatile and cost-effective crystallization platform
  • Compatible with UV crystal imaging when used with HR3-231 and HR3-233 – 22 mm x 0.22 mm Siliconized circle cover slides and HR3-215 and HR3-217 – 22 mm x 0.22 mm Siliconized square cover slides

Description

24 well crystallization plate for hanging drop or sitting drop vapor diffusion crystallization (when used with Micro-Bridges) or dialysis crystallization (when used with Dialysis Buttons). Stackable, optically clear plastic 24 well plates with raised covers (to allow room for cover slides) and flat bottoms for exceptional optics. Raised, wide rings around each reservoir (well) minimize cross contamination and allow each well to be individually sealed with 22 mm diameter circle or square cover slides. Plates are individually wrapped and supplied with applied sealant.

15.0 cm x 10.8 cm plate footprint is convenient for manual pipetting and well access while at the same time compatible with some automated liquid handling systems.
Approximate dimensions: 15.0 cm x 10.6 cm x 2.2 cm.
Approximate well size: 1.7 cm x 1.6 cm.
Typical well volume: 500 to 1,000 µl.
Well capacity: 3.5 ml.

Show More



Hampton蛋白结晶试剂盒VDX Plate with sealant

Click to Zoom In

Hampton蛋白结晶试剂盒VDX Plate with sealant
Hampton蛋白结晶试剂盒VDX Plate with sealant
Hampton蛋白结晶试剂盒VDX Plate with sealant
Hampton蛋白结晶试剂盒VDX Plate with sealant
Hampton蛋白结晶试剂盒VDX Plate with sealant
Hampton蛋白结晶试剂盒VDX Plate with sealant
Hampton蛋白结晶试剂盒VDX Plate with sealant

CAT NO

HR3-171

NAME

VDX™ Plate with sealant

DESCRIPTION

40 plate case

PRICE

$244.00

cart quote

Related Item(S)

  • 22 mm Siliconized Glass Cover Slides
  • OptiClear Plastic Cover Slides

References



同仁化学Hampton蛋白结晶试剂盒VDXm Plate without sealant| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 24 Well Crystallization Plates > VDXm Plate without sealant

VDXm Plate without sealant

Applications

  • Hanging drop crystallization

Features

  • 24 well plate with raised cover
  • Compatible with 18 mm diameter circle cover slides
  • Optically clear plastic
  • 128 mm x 85 mm microplate footprint
  • Compatible with UV crystal imaging when used with HR3-239 and HR3-241 – 18 mm x 0.22 mm Siliconized circle cover slides

Description

24 well plate for hanging drop vapor diffusion crystallization with a microplate footprint. Stackable, optically clear plastic, 24 well plates with raised covers (to allow room for cover slides) and flat bottoms for exceptional optics. Raised, wide rings around each reservoir (well) minimize cross contamination and allow each well to be individually sealed with 18 mm diameter circle cover slides. Plates are individually wrapped and supplied without sealant.

The microplate footprint is space-saving and compatible with automated liquid handling systems.

Approximate dimensions: 128 mm x 85 mm.
Approximate well ID: 14.4 mm.
Typical well volume: 100 to 500 µl.
Height with cover 19.5 mm.
Height without cover with 18 x 0.22 mm cover slide 16 mm.
Height without cover with 18 x 0.96 mm cover slides 17 mm.

Show More



Hampton蛋白结晶试剂盒VDXm Plate without sealant

Click to Zoom In

Hampton蛋白结晶试剂盒VDXm Plate without sealant
Hampton蛋白结晶试剂盒VDXm Plate without sealant
Hampton蛋白结晶试剂盒VDXm Plate without sealant
Hampton蛋白结晶试剂盒VDXm Plate without sealant
Hampton蛋白结晶试剂盒VDXm Plate without sealant
Hampton蛋白结晶试剂盒VDXm Plate without sealant
Hampton蛋白结晶试剂盒VDXm Plate without sealant

CAT NO

HR3-108

NAME

VDXm™ Plate without sealant

DESCRIPTION

50 plate case

PRICE

$174.00

cart quote

Related Item(S)

  • Dow Corning® 7 Release Compound Grease
  • Dow Corning® Vacuum Grease
  • OptiClear Plastic Cover Slides
  • 18 mm Siliconized Glass Cover Slides

同仁化学Hampton蛋白结晶试剂盒VDXm Plate with sealant| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > Crystallization Plates, Hardware & Accessories > 24 Well Crystallization Plates > VDXm Plate with sealant

VDXm Plate with sealant

Applications

  • Hanging drop crystallization

Features

  • 24 well plate with raised cover
  • Sealant applied to 24 wells, ready to seal with cover slides
  • Compatible with 18 mm diameter circle cover slides
  • Optically clear plastic
  • 128 mm x 85 mm microplate footprint
  • Compatible with UV crystal imaging when used with HR3-239 and HR3-241 – 18 mm x 0.22 mm Siliconized circle cover slides

Description

24 well plate with sealant for hanging drop vapor diffusion crystallization with a 128 mm x 85 mm microplate footprint. Stackable, optically clear plastic, 24 well plates with raised covers (to allow room for cover slides) and flat bottoms for exceptional optics. Raised, wide rings around each reservoir (well) minimize cross contamination and allow each well to be individually sealed with 18 mm diameter circle cover slides. Plates are individually wrapped and supplied with applied sealant.

The microplate footprint is space-saving and compatible with automated liquid handling systems.

Approximate dimensions: 128 mm x 85 mm.
Approximate well ID: 14.4 mm.
Typical well volume: 100 to 500 µl.
Height with cover 19.5 mm.
Height without cover with 18 x 0.22 mm cover slide 16 mm.
Height without cover with 18 x 0.96 mm cover slides 17 mm.

Show More



Hampton蛋白结晶试剂盒VDXm Plate with sealant

Click to Zoom In

Hampton蛋白结晶试剂盒VDXm Plate with sealant
Hampton蛋白结晶试剂盒VDXm Plate with sealant
Hampton蛋白结晶试剂盒VDXm Plate with sealant
Hampton蛋白结晶试剂盒VDXm Plate with sealant
Hampton蛋白结晶试剂盒VDXm Plate with sealant
Hampton蛋白结晶试剂盒VDXm Plate with sealant
Hampton蛋白结晶试剂盒VDXm Plate with sealant

CAT NO

HR3-306

NAME

VDXm™ Plate with sealant

DESCRIPTION

50 plate case

PRICE

$284.00

cart quote

Related Item(S)

  • OptiClear Plastic Cover Slides
  • 18 mm Siliconized Glass Cover Slides

References

1. Expression and crystallization of DsbA from Staphylococcus aureus. J.L. Martin et al. Acta Cryst. (2007). F63, 953-956.

同仁化学Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。Products > 96 Well Crystallization Plates > Art Robbins Instruments > Intelli-Plate Flat Shelf

Intelli-Plate Flat Shelf

Applications

  • Sitting Drop Crystallization

Features

  • SBS microplate footprint & standard well spacing
  • Optically clear wells provide for superior crystal imaging
  • Well layout makes crystal harvesting easier
  • Rounded reservoir corners to prevent reservoir (MPD) creep
  • Plate Material: Polystyrene

Description

Art Robbins Instruments has developed the ideal family of plates for crystallography applications: the Intelli-Plate. All versions of the Intelli-Plate have the SBS microplate footprint and standard well spacing and are ideal for manual or automated processing.

The Intelli-Plate Flat Shelf (Art Robbins 102-0001-01 Hampton Research HR8-171 and HR8-172) crystallization plate is a flat drop shelf version of the original Intelli-Plate.

Reservoir volume: 300 µl max.
No drop well.
Plates are made of polystyrene.

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

Show More



Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf

Click to Zoom In

Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf
Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf
Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf
Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf
Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf

CAT NO

HR8-171

NAME

Intelli-Plate Flat Shelf

DESCRIPTION

10 plate case

PRICE

$93.00

cart quote

CAT NO

HR8-172

NAME

Intelli-Plate Flat Shelf

DESCRIPTION

40 plate case

PRICE

$343.00

cart quote

Support Material(s)

Hampton蛋白结晶试剂盒Intelli-Plate Flat Shelf Intelli-Plate Details & ComparisonHampton蛋白结晶试剂盒Intelli-Plate Flat Shelf Plate Drawing Intelli-Plate 102-0001-01

Related Item(S)

  • ClearSeal Film™ and Applicator
  • Crystal Clear Sealing Tape
  • Crystal Clear Sealing Film

References



同仁化学Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141| 日本DOJINDO

发表于由

上海金畔社生物科技有限公司日本同仁化学dojindo全线产品代理 中国代理商

上海金畔生物代理Hampton research品牌蛋白结晶试剂耗材工具等，我们将竭诚为您服务，欢迎访问Hampton research官网或者咨询我们获取更多相关Hampton research品牌产品信息。

Products > Crystallization Plates, Hardware & Accessories > 24 Well Crystallization Plates > VDX Plate without sealant

VDX Plate without sealant

应用

  • Hanging drop crystallization
  • Sitting drop crystallization with Micro-Bridges®
  • Dialysis crystallization with Dialysis Buttons™
  • 悬滴结晶
    使用 Micro-Bridges® 静滴结晶
    Dialysis Buttons™ 透析结晶

特征

  • 24 well plate with raised cover
  • Compatible with 22 mm diameter square and circle cover slides
  • Optically clear plastic
  • Extremely versatile and cost-effective crystallization platform
  • Compatible with UV crystal imaging when used with HR3-231 and HR3-233 – 22 mm x 0.22 mm Siliconized circle cover slides and HR3-215 and HR3-217 – 22 mm x 0.22 mm Siliconized square cover slides
  • 24孔板带凸起盖
    兼容直径为 22 毫米的方形和圆形盖玻片
    光学透明塑料
    用途极其广泛且具有成本效益的结晶平台
    与 HR3-231 和 HR3-233 – 22 mm x 0.22 mm 硅化圆形盖玻片和 HR3-215 和 HR3-217 – 22 mm x 0.22 mm 硅化方形盖玻片一起使用时与 UV 晶体成像兼容

描述

24 well crystallization plate for hanging drop or sitting drop vapor diffusion crystallization (when used with Micro-Bridges or Glass Rods), or dialysis crystallization (when used with Dialysis Buttons). Stackable, optically clear plastic 24 well plates with raised covers (to allow room for cover slides) and flat bottoms for exceptional optics. Raised, wide rings around each reservoir (well) minimize cross contamination and allow each well to be individually sealed with 22 mm diameter circle or square cover slides. Plates are individually wrapped and supplied without sealant.

15.0 cm x 10.8 cm plate footprint is convenient for manual pipetting and well access while at the same time compatible with some automated liquid handling systems.
Approximate dimensions: 15.0 cm x 10.6 cm x 2.2 cm.
Approximate well size: 1.7 cm x 1.6 cm.
Typical well volume: 500 to 1,000 µl.
Well capacity: 3.5 ml.

24 孔结晶板，用于悬滴或坐滴蒸气扩散结晶（与微桥或玻璃棒一起使用时）或透析结晶（与透析按钮一起使用时）。 可堆叠的光学透明塑料 24 孔板，带有凸起的盖子（为盖玻片留出空间）和平底可提供出色的光学性能。 每个储液罐（孔）周围凸起的宽环可最大限度地减少交叉污染，并允许使用 22 毫米直径的圆形或方形盖玻片单独密封每个孔。 板是单独包装和供应的，没有密封剂。

15.0 厘米 x 10.8 厘米的板占用空间便于手动移液和孔访问，同时与一些自动液体处理系统兼容。
近似尺寸：15.0 厘米 x 10.6 厘米 x 2.2 厘米。
大约井尺寸：1.7 厘米 x 1.6 厘米。
典型孔体积：500 至 1,000 µl。
井容量：3.5 毫升。

HR3-141 VDX Plate without sealant

Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141
Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141
Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141
Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141
Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141
Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141
Hampton蛋白结晶试剂盒VDX Plate without sealant/HR3-141

CAT NO

HR3-141

NAME

VDX™ Plate without sealant

DESCRIPTION

40 plate case

PRICE

$139.00

相关项目

  • Dow Corning® 7 Release Compound Grease
  • Dow Corning® Vacuum Grease
  • 22 mm Siliconized Glass Cover Slides
  • OptiClear Plastic Cover Slides
  • 道康宁® 7 脱模复合润滑脂
    道康宁®真空润滑脂
    22 mm 硅化玻璃盖玻片
    OptiClear 塑料盖玻片
